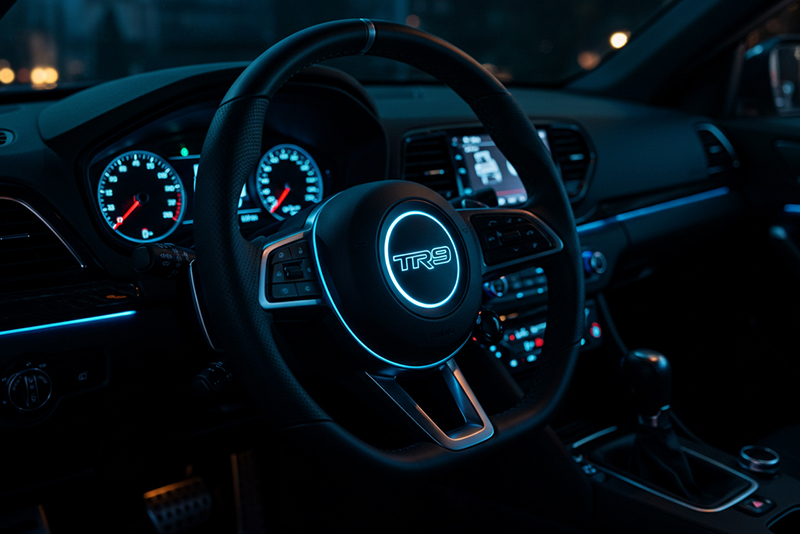

Illuminated Seat Emblems Lighting for Enhanced Styling Sleek, Seamless Fit Logo seat LED TR9-Blue-Steering Wheel Light LED seat illumination

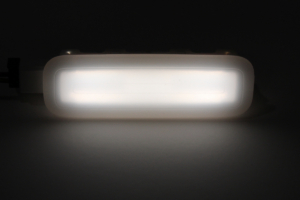

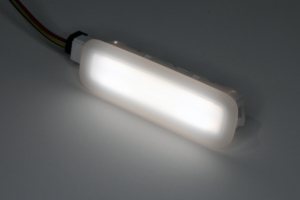

Small Interior Task Light

A smart, compact interior task light designed to fit seamlessly into the headliner or other vehicle surfaces. Featuring 90 CRI premium light quality and excellent homogeneity, the non-see-through lens ensures a clean, finished appearance when the light is off.

Task Light Features

  • 90 CRI LED
  • White Color
  • Reverse polarity protection
  • Maximum Luminance 42,1 LUX
    300mm in ’y’ direction and 0mm in ’x’ direction
  • Minimum Luminance 2,8 LUX
    300mm in ’y’ direction and 490mm in ’x’ direction
Download Data Sheet
PreviousNext
12

Ultra-Thin Cabin and Seat Lighting

Illumination solutions for Automotive, Marine, RV, and Stadium Seating

Introducing Innotec’s extremely thin and durable LED backlighting: Our Brand Light. IP67 rated and razor-thin, it can fit into the tightest spaces. With its slim package and rugged construction, Innotec’s Brand Light is designed to withstand any environment, ensuring your logo, brand message stays brilliantly illuminated for years to come.

Elevate Your Brand Identity

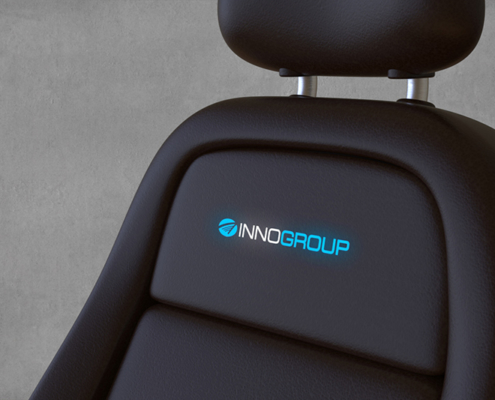

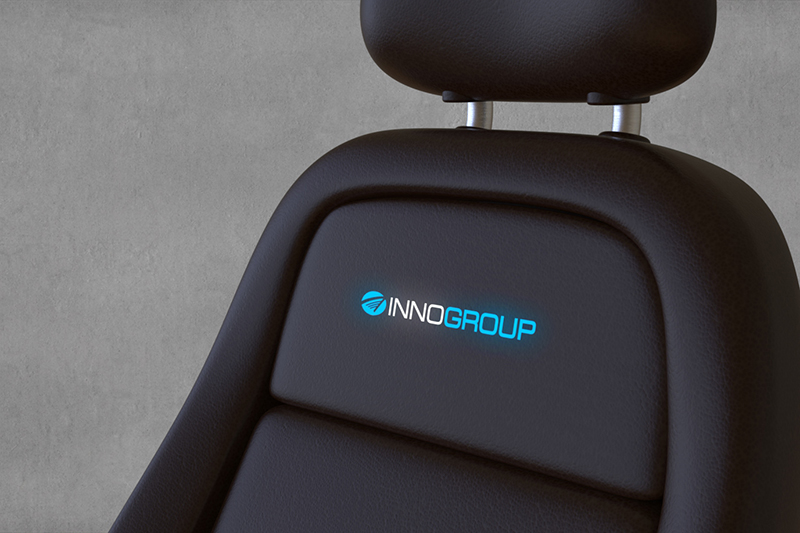

Our illuminated seat emblems integrate our high-performance LED technology into seating designs, offering a sophisticated way to showcase your brand’s logo or emblem. These solutions provide clear visibility and reinforce brand recognition without compromising comfort or durability.

A lighting solution that blends style, practicality, and durability while remaining cost-effective and compliant with safety standards.

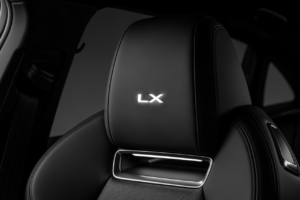

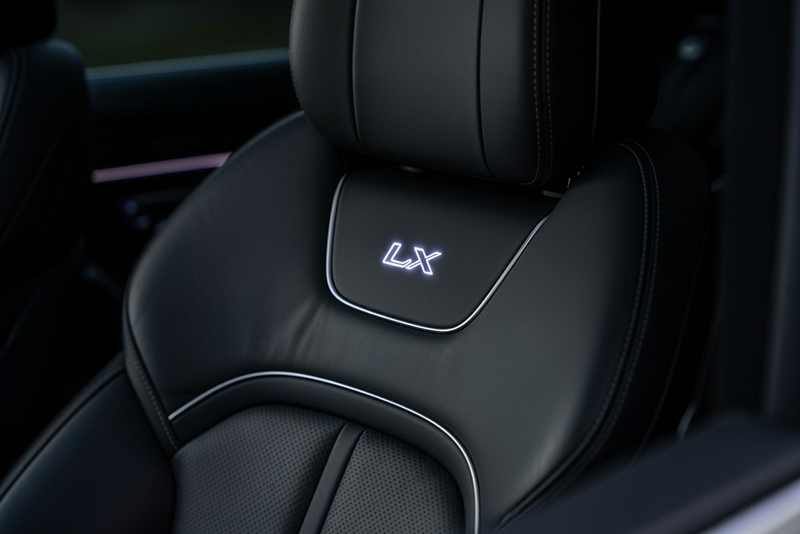

  • LX-headrest emblem light
  • backrest emblem light

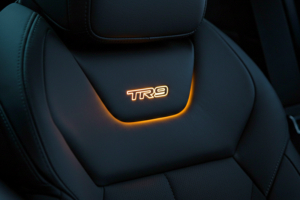

  • TR9-LED seat badge

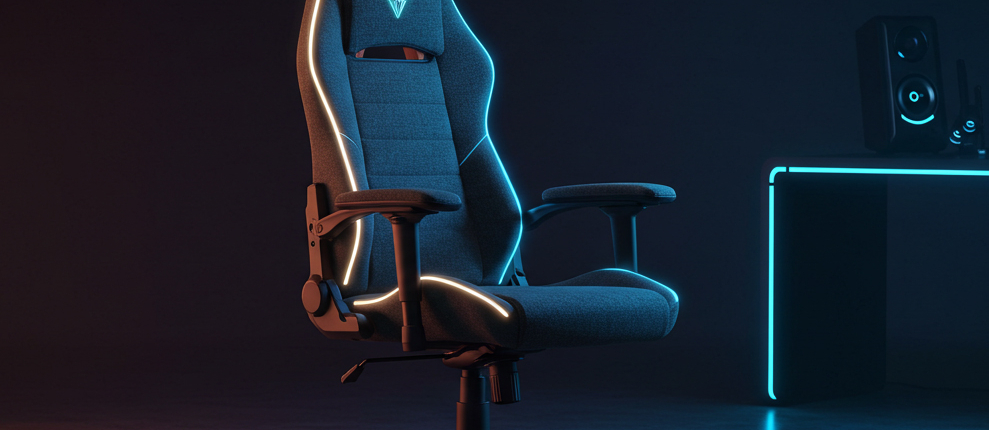

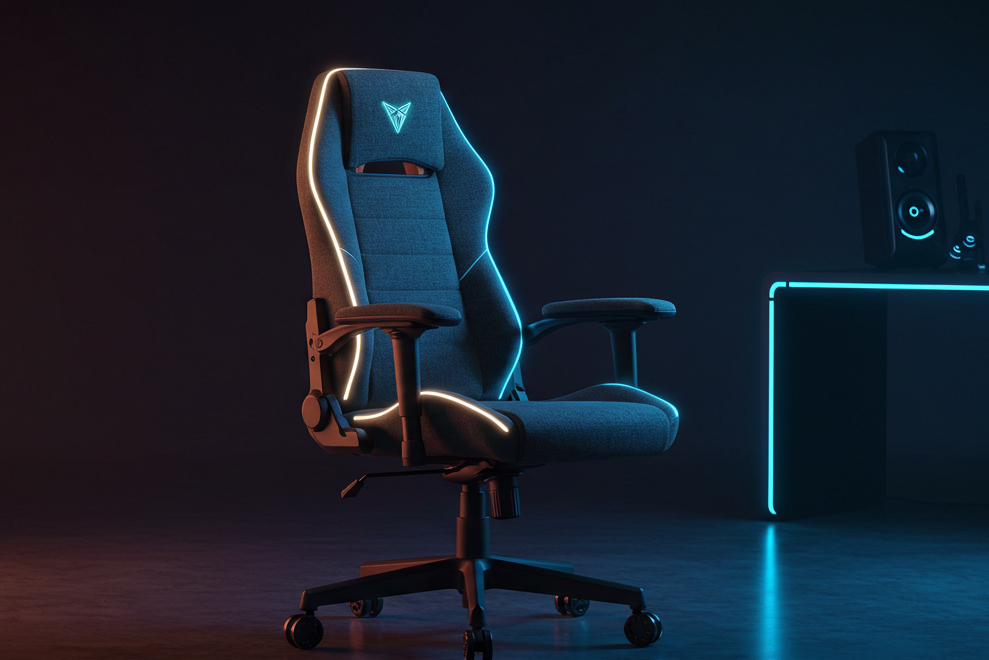

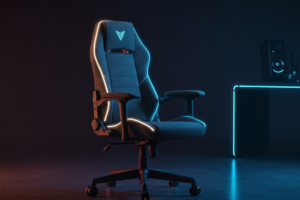

  • LED lighting for gaming chairs
PreviousNext
12345

Brand Lighting Modules

Dual LED Modules

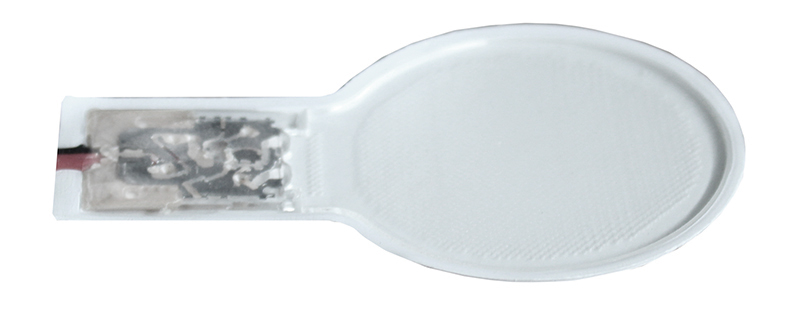

2' round light panel

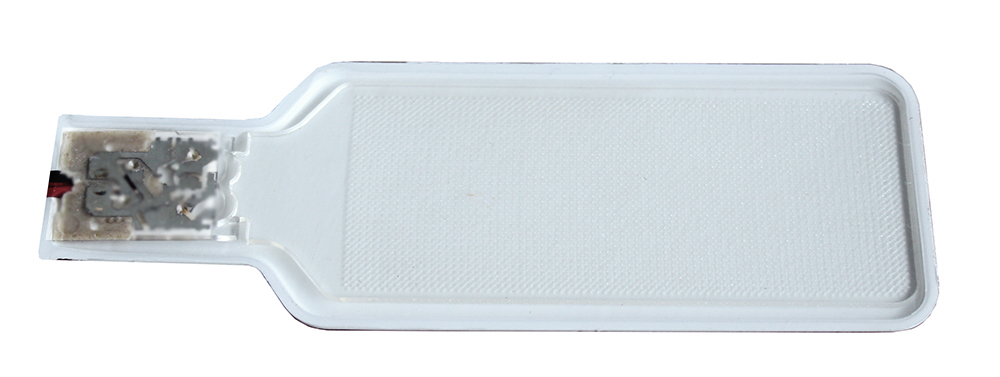

3 inch light panel

Specifications:

  • 12 VDC nominal, functional from 9V-16V DC​​
  • 12VDC single LED– 0.18mA​
  • 12VDC dual LED- 0.22mA​
  • Reverse polarity voltage protected​
  • -40C to 85C operating temperatures​
  • IP67 rated​
  • Wire Harness – 22 AWG

Applications:

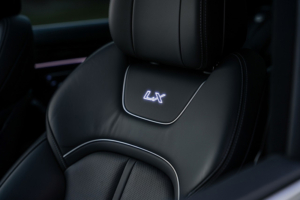

  • LX-headrest emblem light
  • Illuminated Flags steering wheel emblem
  • backrest emblem light
  • Illuminated steering wheel emblem
PreviousNext
1234

Accent Lighting Modules

20MM Series RGB – LIN, CAN, PWM

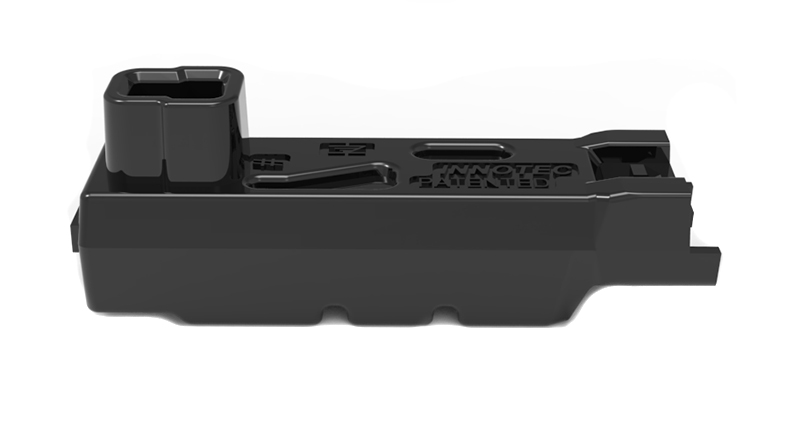

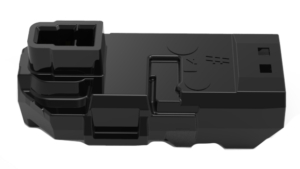

LIN RGB light module

10MM Series RGB – LIN, CAN, PWM

LIN RGB 10mm Module

Specifications:

  • Baud rate up 19.2kbps
  • Integrated LIN transceiver
  • Internal LIN slave termination resistor
  • Compliant to LIN 2.0/2.1/2.2A and SAE J2602
  • Support SNPD (BSM) auto addressing
  • 100% color calibration
  • Color measuring precision at +-0.001
  • Light engine color tolerance +-0.01

Applications:

  • Ambient seat lighting
  • Seam lighting for automotive seating
  • Seating trim light example
  • Automotive lavender lighting

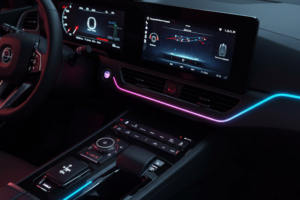

  • Dashboard LIN RGB lighting
  • LED lighting for gaming chairs
PreviousNext
123456
RGB cabin lighting

Safety Considerations:
Our lighting can be controlled with a master lighting architecture to ensure the lighting isn’t too bright or distracting, as this could affect the driver’s focus. The light’s intensity and color can be carefully chosen to enhance ambiance without compromising safety or comfort.

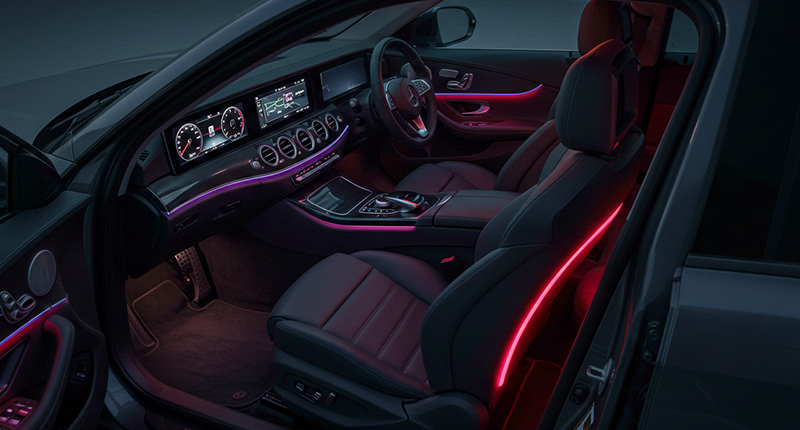

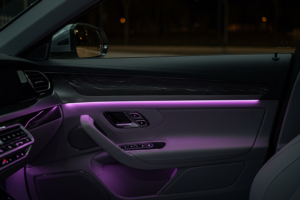

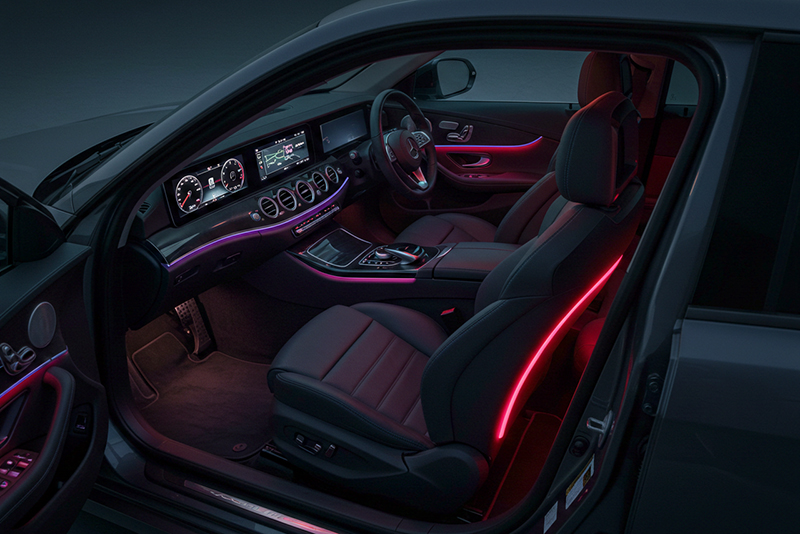

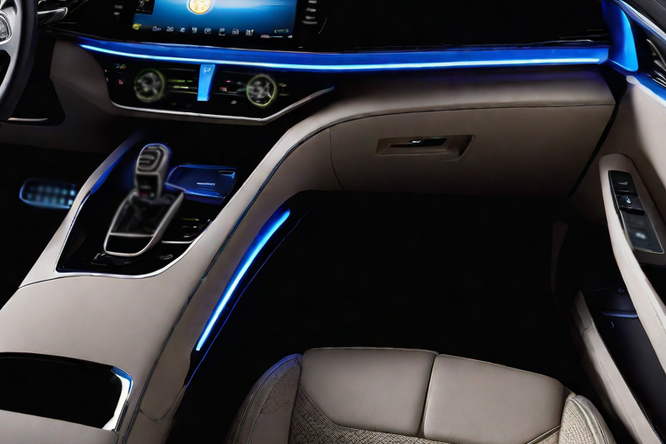

Interior ambient lighting

Intensity Management:
The ability to dynamically adjust brightness levels is crucial – interior lighting should be bright enough for functionality (reading maps, finding items) but dim enough to preserve night vision and avoid creating glare on windows or mirrors.

All weather Lighting - Innotec

Durability & Environmental Resistance:
Our boardfree technology with automotive-grade components can withstand extreme temperature variations, humidity, vibration, and UV exposure over a 10-15 year lifespan.

Applications Gallery

PreviousNext
12345678910
Seating trim light example

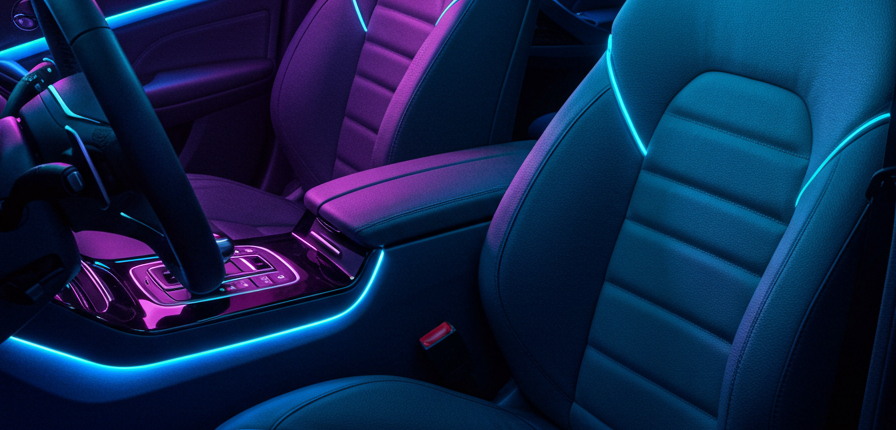

Ambient seat lighting

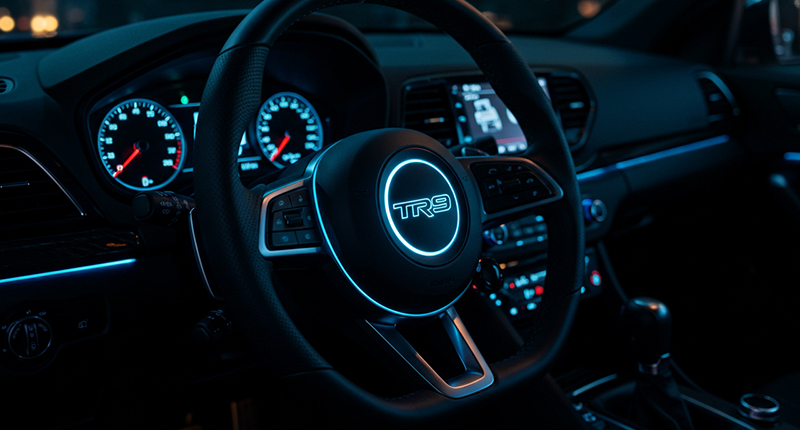

Illuminated steering wheel emblem

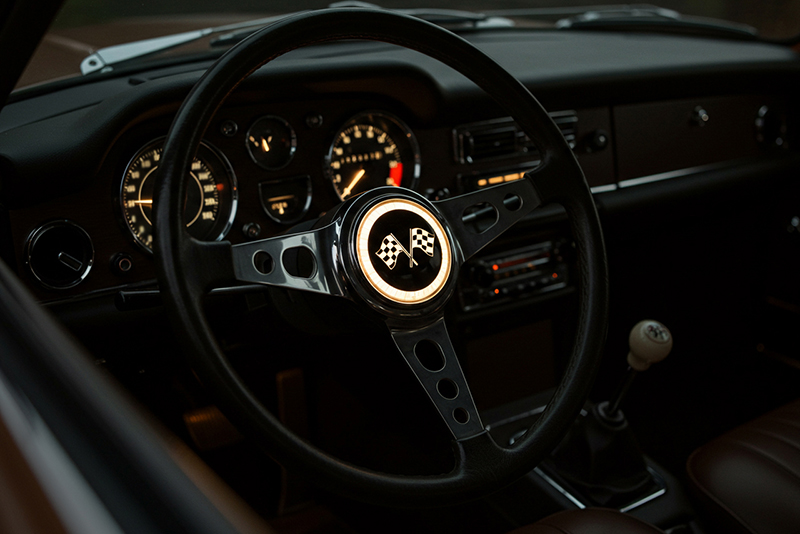

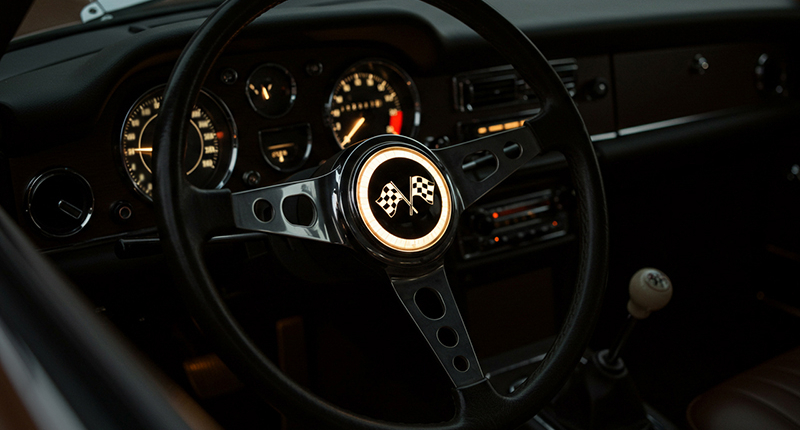

Illuminated Flags steering wheel emblem

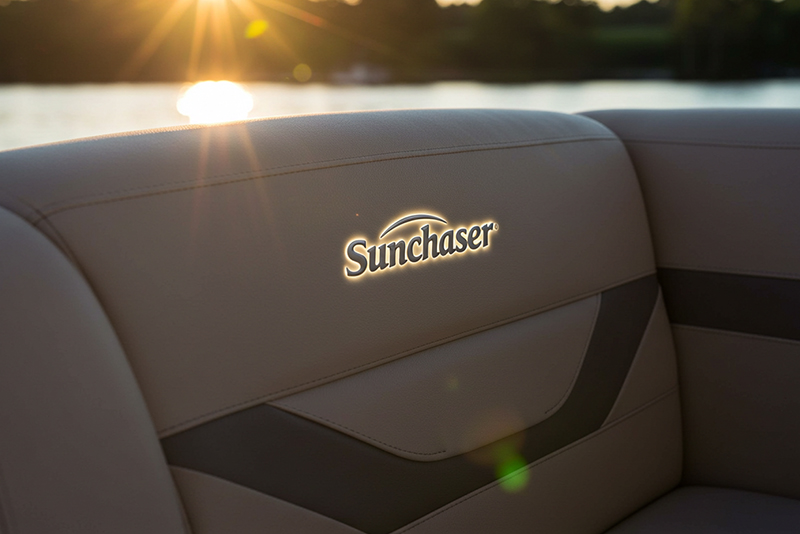

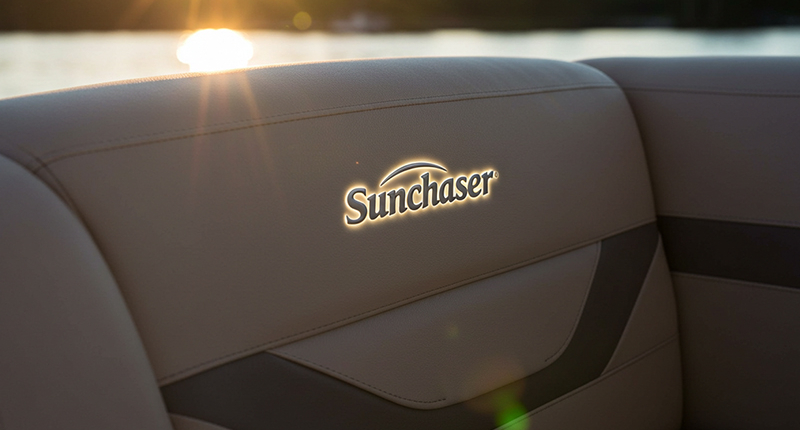

Marine seat emblem light
Theater seating light

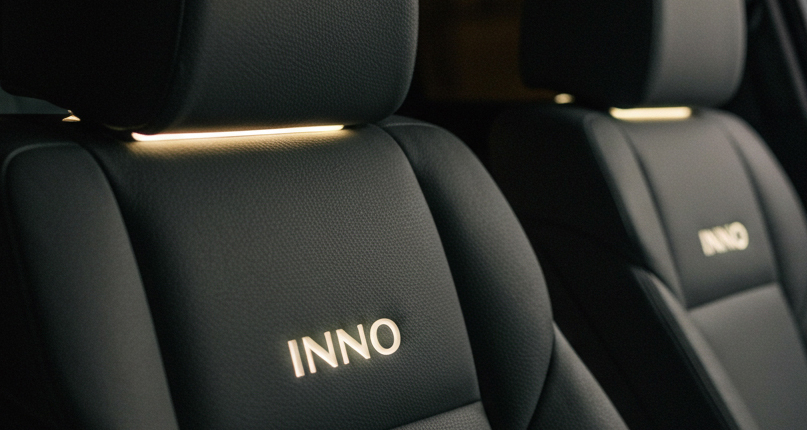

backrest emblem light

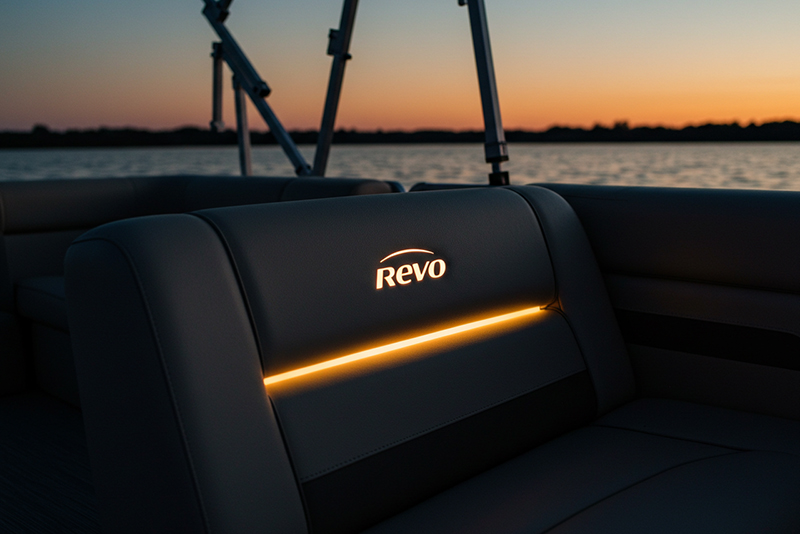

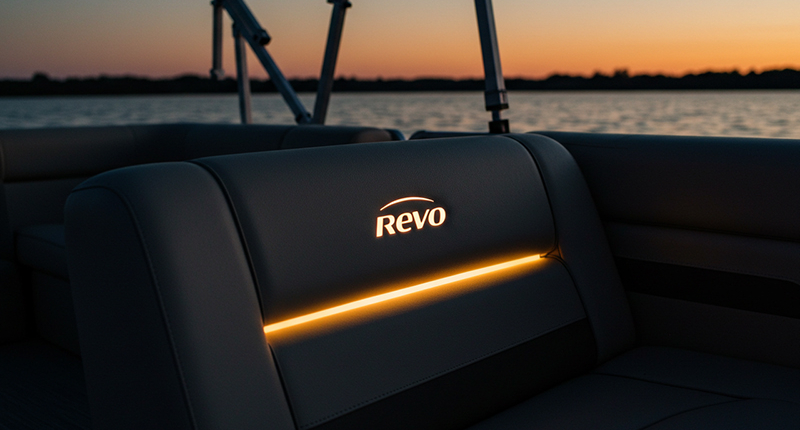

Revo-seat emblem light
LED lighting for gaming chairs

Innotec light engines are engineered to operate in extreme conditions. Light up automotive, agriculture, power sports, heavy equipment, theater, stadium, marine or any other seating with trusted experience and execution.
