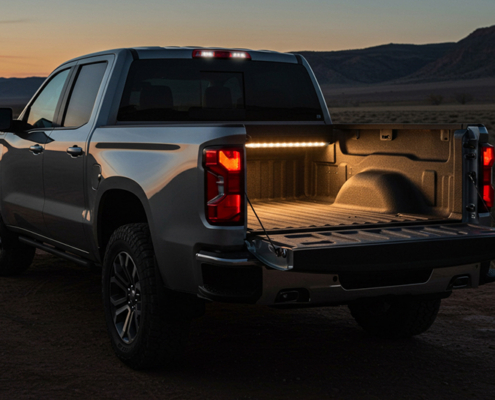

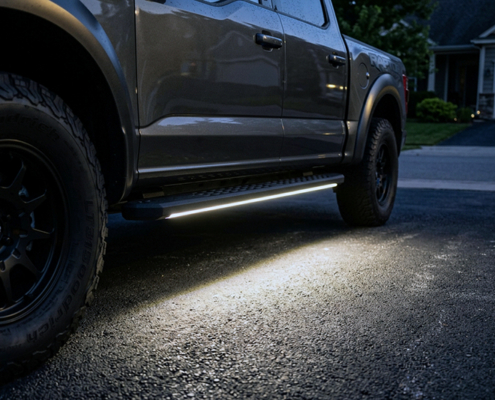

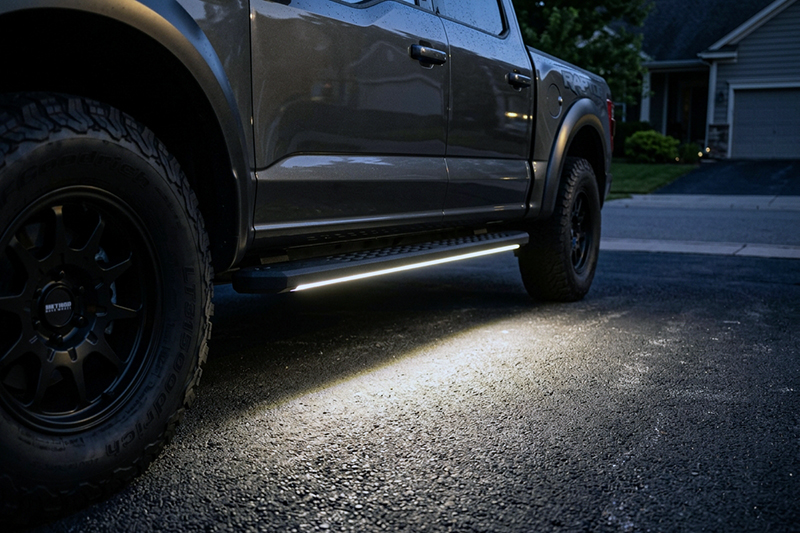

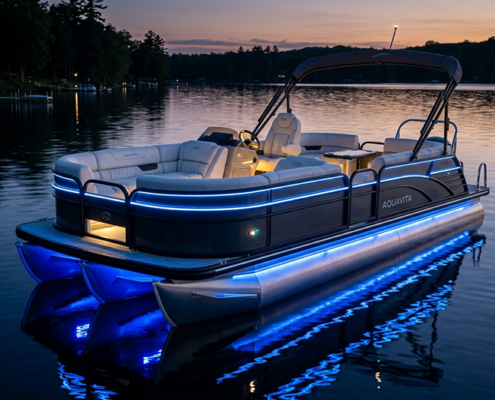

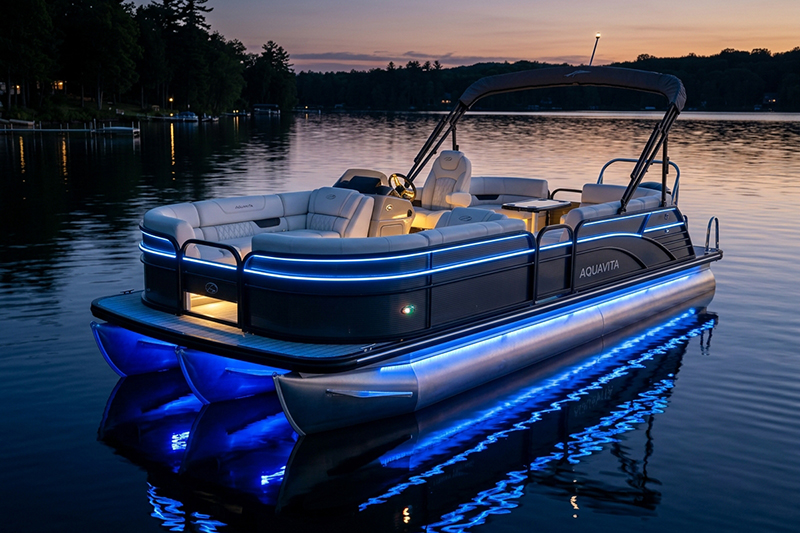

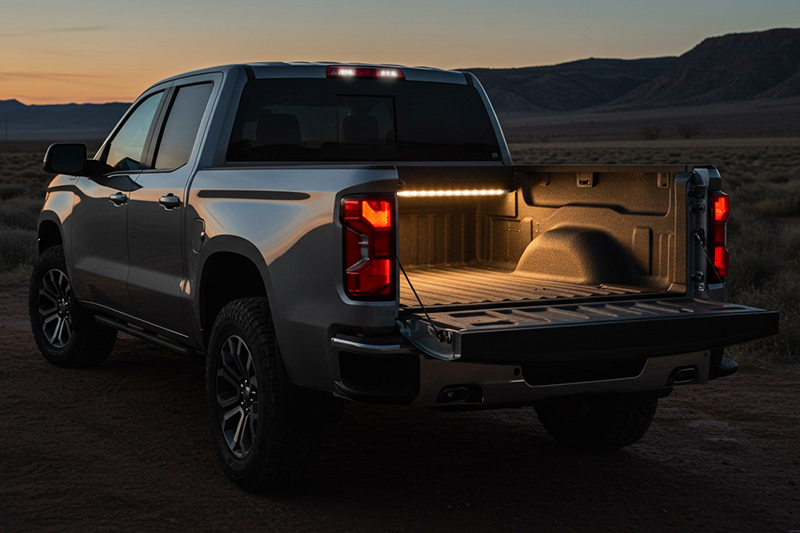

Linear lighting for cars, boats, railings, semis, and more

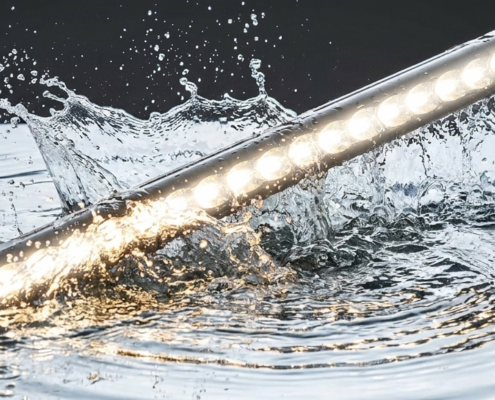

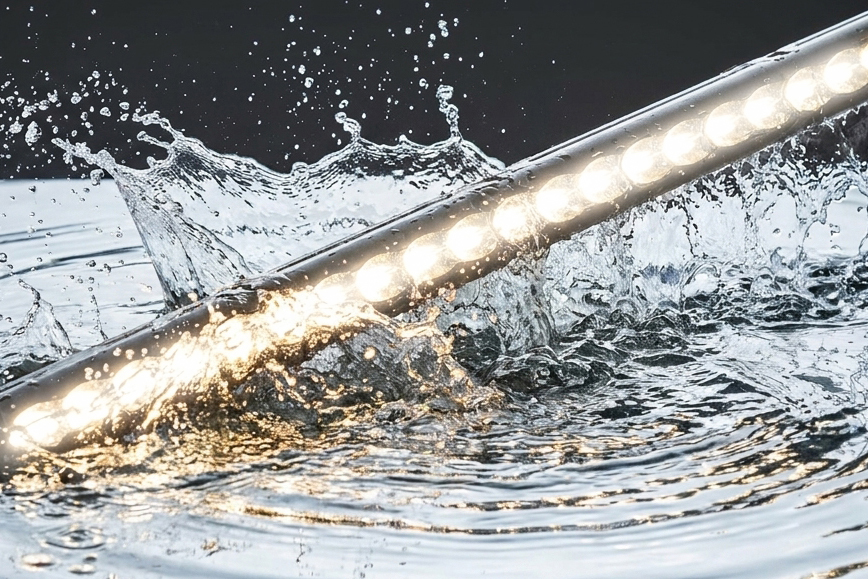

Our LED Light Strip is powered by our BoardFree® technology. Built without a circuit board that makes its over-molded design possible, we are able to offer one of the most durable and versatile lights on the market. Water, corrosion, vibration, and shock resistance means this LED light is built to last.
Product Features
- Fully sealed electronics
- Shock and vibration resistant
- Corrosion and saltwater resistant
- Bonded construction
- Dimmable
- Rated IP67
- Selectable connections
Product Options

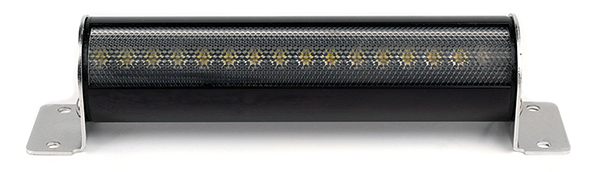

7” Linear Light – IDC
IDC (insulation displacement
for use with 18-gauge wire)
- 15 LEDs
- 12 Volts / 3 Watts / 300 lm
- IP 67 rating
- LED color temperature 2700K
- 191mm long x 17mm wide x 6mm tall connector 11mm tall
7” Linear Light – WPJ
WPJ – Sealed locking connector
- 15 LEDs
- 12 Volts / 3 Watts / 300 lm
- IP 67 rating
- LED color temperature 5000K
- 191mm long x 17mm wide x 6mm tall connector 26mm tall

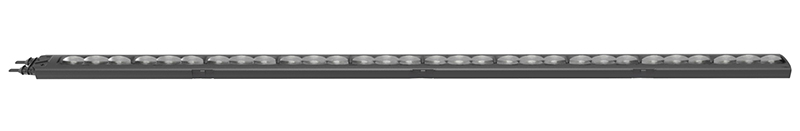

14” Linear Light – Flying Lead 12V
Flying Leads (20-gauge wire)
- 30 LEDs
- 12 Volts / 6 Watts / 600 lm
- Flying Leads (2 Wire) 1830mm
- IP 67 rating
- LED color temperature 6500K
- 407mm long x 17mm wide x 6mm tall
14” Linear Light – Flying Lead 24V
Flying Leads (20-gauge wire)
- 30 LEDs
- 12 Volts / 6 Watts / 600 lm
- Flying Leads (2 Wire) 1830mm
- IP 67 rating
- LED color temperature 6500K
- 407mm long x 17mm wide x 6mm tall
Connector Options
WPJ Locking connector sealed / un-sealed options
IDC- Insulation displacement
connectors (2 wire)
Flying leads
2-wire with custom lengths available
Straight Connector
7” Mid-Power Linear Light – 12V
Flying Leads (20-gauge wire)
- 15 LEDs
- 12 Volts / 6 Watts / 600 lm
- Flying Leads (2 Wire)
- IP 67 rating
- LED color temperature 5000K-6500K
14” Mid-Power Linear Light – 12V
Flying Leads (20-gauge wire)
- 30 LEDs
- 12 Volts / 6 Watts / 1200 lm
- Flying Leads (2 Wire)
- IP 67 rating
- LED color temperature 5000K-6500K
7” High-Power Linear Light – 12V
Flying Leads (20-gauge wire)
- 15 LEDs
- 12 Volts / 9Watts / 900 lm
- Flying Leads (2 Wire)
- IP 67 rating
- LED color temperature 5000K-6500K
14” Mid-Power Linear Light – 12V
Flying Leads (20-gauge wire)
- 30 LEDs
- 12 Volts / 6 Watts / 1200 lm
- Flying Leads (2 Wire)
- IP 67 rating
- LED color temperature 5000K-6500K
